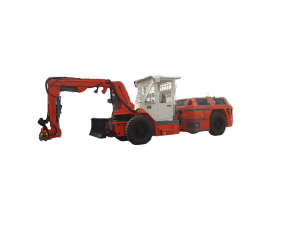

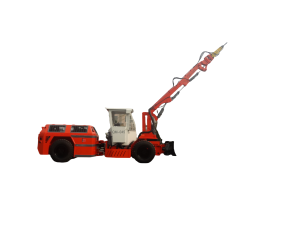

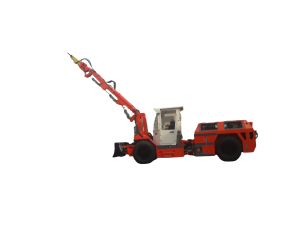

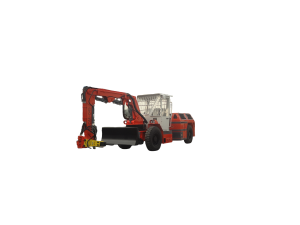

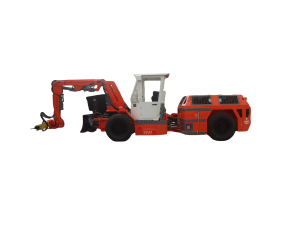

Yantai Chi Hong Machinery Co., Ltd. Scalerย is a diesel driven unit designed for mechanised scaling in underground mines and tunnels where tramming height is 7 m or more.
The powerful liquid cooled turbo charged 86.5 kW Deutz TIER 3 approved engine provides clean and efficient operation, whichย gives a maximum speed of 12 km/h in an upward inclined 1:7 tunnel. In a horizontal tunnel, the maximum speed is 23.6 km/h.
-Small envelope size and turning radius enable easy navigation
-Excellent payload capacity improves productivity and provides a low cost per hauled ton
-Ground-level daily maintenance enables safer servicing
| Dimension (L-W-H) | 7.066 x 1.800 x 2.500 m |
| Speed | 0-23.6KM/h |
| Max. Working Height | 7-9.5M |
| Weight (operating) | 13,000 kg |
| Engine power | 86.5 kW |
| Max. Traction | 220KN |
| Min. Turning Radius Inner | 4118mm |
| Min. Turning Radius Outside | 6202mm |
